Suzhou Hulk Robot Co., Ltd.
6 Years
| Ask Lasest Price | |
| Brand Name : | Hulk Robot |
| Model Number : | HK5404 |
| Certification : | CE/ISO9001/IPMS |
| Price : | Negotiate |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 200 sets per month |
| Delivery Time : | 21 work days |

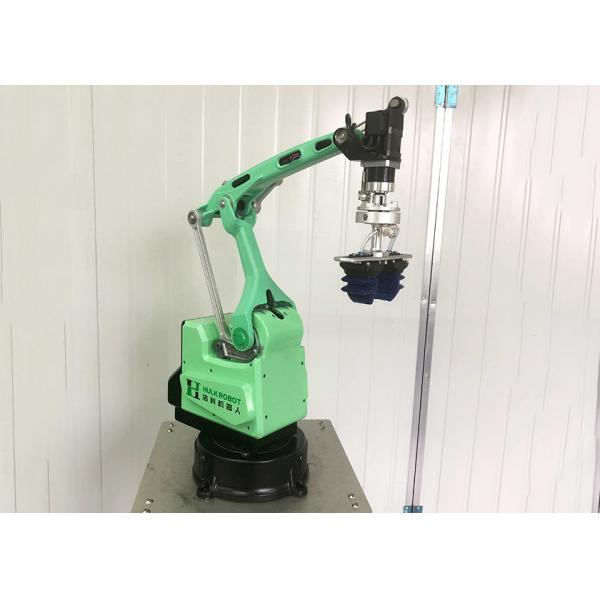

1 Kg Payload 5 Axis Collaborative Robot Cobot For Palletizing
Product description
This 1 Kg Payload 5 Axis Collaborative Robot Cobot For Palletizing set-up and configuration is straightforward, thanks to the
user-friendly design of the interface. It is available on a tablet,
and there is no need for complicated programming or robotics
training, meaning the HK5404 facilitates quick and easy set-up. It
is suitable for use in multiple production lines.
Feature
Easy-to-use Palletizers,
Quick to Install,
Relocate and no complicated Programming Needed.
Cost-effective,
High safty, and flexible to deploy
Wide ranging industries and applications
High speed to improve efficiency
Technical parameter
| Model | HK5404 |
| Maximum working radius | 540mm |
| Number of axis | 5 |
| Installation | Floor / desktop |
| N.W/ G.W | 13kg/20kg |
| Repeat Positioning Accuracy | ±0.05mm |
| Maximum Load | 1kg |
| Power Consume | 0.4KVA |
| Power supply | Input:Single phase 110V-240V 50Hz Output:DC 24V(400W) |
| Voltage rating | 220V 50 Hz |
| External communication | WIFI/Ethernet |
| Application | Industry, Academic, Teaching, Education |
| Safety standard | ISO 9001-2015 |
| Control software | Hulkbot Studio |
| Drive System | Steper motor |
| Working condition | -10°C~60°C |
| I/O | Input 5/Output 5,can be expanded by 16 |
Working rang of each axis
| Axis | Working Range | Max Speed |
| Axis 1 | ±160° | 360°/s |
| Axis 2 | -42°~85° | 360°/s |
| Axis 3 | -20°~100° | 360°/s |
| Axis 4 | ±165° | 500°/s |
Main applications
Load & Unload
Assembling Picking with camera
STEM Education
Load & Unload
School laboratory
lock screw
Laptop case grab
Auto parts
3C electronics
Mechanical Machining
Visual inspection
Biological medicine
Unmanned retail
Food processing
Vocational education
Lens processing
Detailed images
|
|
