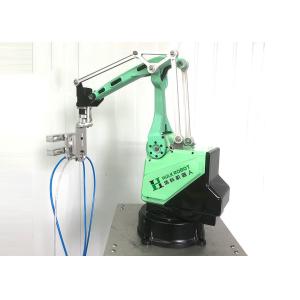

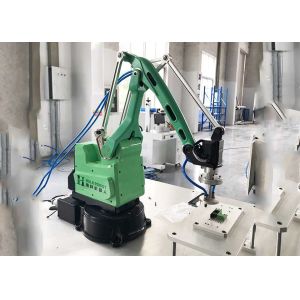

1KG Load Cost-effective Mini Industrial Manipulator Multi Axis Robotic Arm​

1. The load of robot is 1KG, 4 dof, arm span of 540mm, a repeat positioning accuracy of less than ±0.05mm, no control cabinet and no reducer,
which can realize drag teaching and network remote control.
2. We can custom your company name or logo on the machine when the quantity exceed 30 sets.
3. Our robotic arm is very easy to learn and operate.
4. We provide free online support, if not solved, will return to the factory for maintenance.
5. Once upon contract confirmed, we will provide all of detailed instructions to you and your electric engineer could install within 15 minutes and program it according to your application .
6. If there are any questions during using,we would communicate thru video and our engineer could provide after-service support for you.
7. Welcome to send samples to us, we will provide detailed project program according to your situation.
8. We will provide you a installation manual after you place order,our robot is easy to learn and operate, your electrical engineer can learn it within 15 minutes..

1. Item: industrial manipulator
2. Model:HK5404
3. Payload: 1kg
4. Power supply: Input:Single phase 110V-240V 50Hz, Output: DC 24V(400W)
5. Arm span: 540mm
6. Repeat positioning accuracy: 0.05mm

Robot Parameters:

Features:

1. No control cabinet, avoid complex wiring, convenient for on-site installation.
2. Labor saved.
3. Wireless PAD control
4. Save Floor space
5. Linux based real time control system and 1GHz circuit boards


Application Fields:

1. Vocational education
2. STEM education
3. Products display
4. Robot research
5. Assembling Picking with camera
6. lock screw
7. Visual defect detection
8. Visual position detection
9. Food packaging



FAQ:


1. The tablet for the machine, is it coming together with the robot arm?
♦ Just need use above android 7.0 system tablet can be work.

2. Are you able to put my company name on the machine, or show no label on the machine and tablet screen?
♦ Yes, we can custom your company name or logo on the machine when the quantity exceed 30 sets.

3. How do we integrate it with a camera vision? What are the components are required to integrate the robot with the vision system... camera, software communication to the robot.
♦ Robot can be connected by network cable or wireless WIFI, which can be used in conjunction with the vision. We will provide relevant protocols. Customers need to prepare cameras and also need visual supporting software, as well as visual system debugging.

4. Is the load 1kg at the end of the arm fully extended? Please give me the load at different distances from the axis of rotation (base) of the robot
♦ Currently,the farthest distance is 1kg load.

5. How many inputs and how many outputs?
♦ Our robot has 5 I/O itself, if not enough, which can add extra 16 I/O.

6. Can the robot rotate the product 180 degrees?
♦ Yes, our robot can rotate the products 180 degrees.

7. Can I program the screen to control the robot (start, stop, control the inputs and outputs)?
♦ Yes, you can.

Suzhou Hulk Robot Co., Ltd is a high-tech enterprise focusing on robot development and artificial intelligence.The company has applied for 30 invention patents and 12 software copyrights.Currently, we have established industry-university-research cooperation with Shanghai Jiao Tong University, Nanjing University of Aeronautics and Astronautics and other universities. The products have passed the ISO9001 certification, CE certification, intellectual property certification and been exported to Germany.

Aiming at market segment applications, we designed and developed a 1kg load manipulator, which is extremely cost-effective.The robot is small and no separate control cabinet,which can be integrated with the camera to realize more applications through AI and cloud service.
